ActivRAC Industrial Mobile Shelving System

The ActivRAC Industrial High Density Mobile Shelving and Storage System from Spacesaver. It’s the right choice for those non-office / warehouse storage areas. From big, heavy and active, down to small parts in drawers, we’ve got your stuff stored.

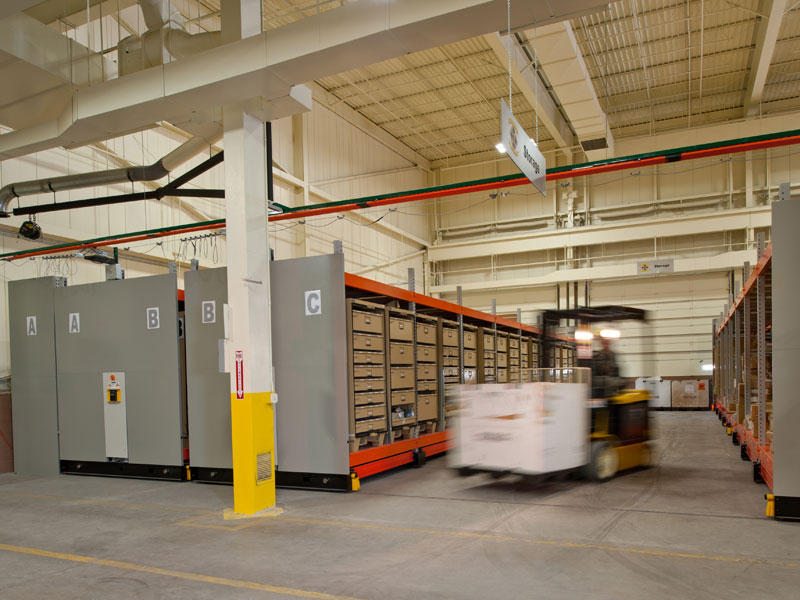

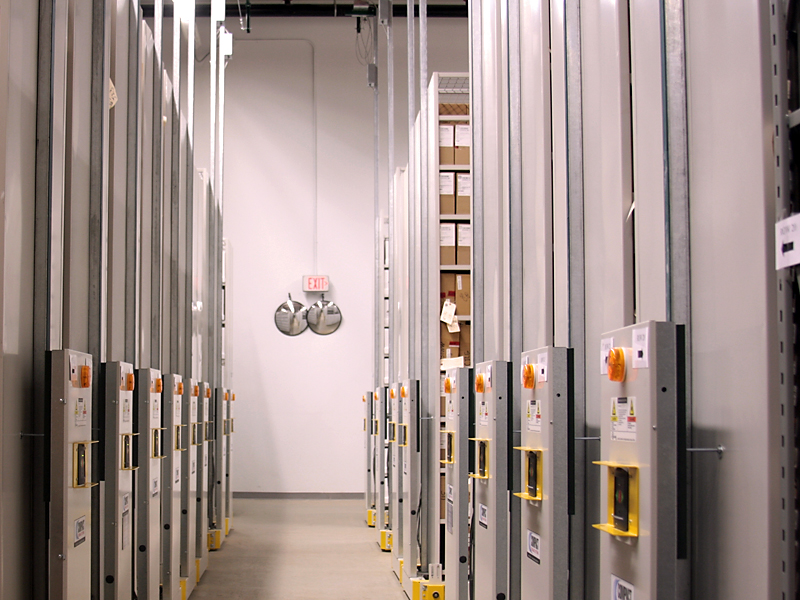

What is it that eats up a bunch of space in big storage areas? It’s the aisles between the shelving or racking. With an ActivRAC Industrial High Density Mobile Storage System that space could be used for additional storage, or put to other uses. With this mobile storage system, stationary rows of shelving are mounted on carriages that move side-to-side on wheels and a rail system. Now one moving aisle replaces multiple dedicated aisles, freeing up to 100% more space in the same area.

With emphasis on reduced inventory, rapid throughput and quick response to market needs, an industrial storage system should have three qualities
• Fast, easy access with 100% selectivity
• Efficient cube utilization
• High return on investment (ROI) with quick payback

There are four types of Spacesaver ActivRAC Mobile Storage Systems: ActivRAC 7M, ActivRAC 7P, ActivRAC 16P, and ActivRAC 30P.

The ActivRAC 7M is a mechanical-assist mobile system, which means it is turned by a hand-crank – an ergonomic handle and adjustable gear ratio ensure that it is easy to move, no matter how much weight is stored on the system.

The ActivRAC 7M mechanically assisted industrial racking system features:
• 7,000 lbs. maximum load for each storage rack or shelving section.
• Mechanical assist, manual movement.
• Can be installed on existing concrete slab without the need for leveling with a second concrete pour or adding structural footings.
• Available top mount or recessed rails to meet your application’s needs.

The ActivRAC 7P is an electrically powered high density mobile system. It is designed specifically for light- to medium-duty material storage and stocking needs. At the touch of a button, the ActivRAC 7P allows the user to shrink their storage area but maintain 100% SKU accessibility.

The ActivRAC 7P mobilized industrial racking system features:
• 7,000 lbs. maximum capacity per carriage (between rails).
• Designed to work with existing racking, shelving, and drawer systems.
• Convenient push button motorized operation – includes battery unit in the event of a power outage.
• Unlimited carriage lengths and configurations.
• Photo Sweep and aisle entry sensors to ensure operator safety.
• Installs on existing concrete slab without the need for leveling with a second concrete pour or adding structural footings.

The ActivRAC 16P and ActivRAC 30P are also both electrically powered mobile systems, so they spring to action with the touch of a button. There are a few note worthy differences in these two systems.

The ActivRAC16P power mobilized storage system features:
• 16,000 lbs. maximum load per rack or shelving section.
• Convenient push button motorized operation – including RF Remote Control and battery back up to open aisles in the event of a power outage.
• Virtually unlimited carriage lengths and configurations.
• Safest, most reliable and easiest to use warehouse racking system available.
• Flexible design meets the most demanding industrial requirements.
• Installs on existing concrete slab without the need for leveling with a second concrete pour or adding structural footings.
• Available top mount or recessed rails to meet your application’s needs.

The ActivRAC30 mobilized warehouse storage racks system features:
• 30,000 lbs. maximum load per rack or shelving section.
• Convenient push button motorized operation – including RF Remote Control and battery back up to open aisles in the event of a power outage.
• Virtually unlimited carriage lengths and configurations.
• Safest, most reliable and easiest to use industrial storage racks system available.
• Flexible design meets the most demanding industrial requirements.
• Leveled, recessed rail system – requires structural footings and second concrete pour.

So far, nobody has come up with a serious load requirement that couldn’t be met by one of these systems. And we can fit them to meet almost any building column or ceiling height restrictions.

A wide variety of safety and control devices are available to prevent carriage movement and protect personnel and equipment in the aisles. Wire-guided vehicles can be integrated with systems by means of guide wires in the aisle floors. Vehicles can also be equipped with remote aisle controls.

In this setting, storage is dynamic, not static. That’s why the team of ActivRAC Industrial storage systems are designed for high activity performance.

Contact us today for product information or to schedule a space planning analysis.
